Sale!

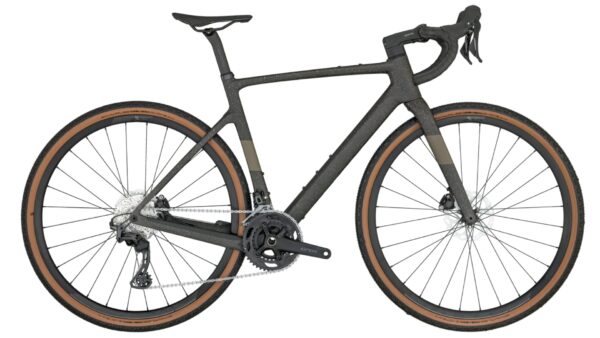

Scott Addict Gravel 40 (2024)

Save 17%
SIZE 49 & 54 IN STORE

Original price was: $4,799.00.Current price is: $3,999.00.

Enquire
Due to dealer agreement we are unable to ship this bike/frame.

Description

Contact us in store for more information on availability and pricing!

The SCOTT Addict Gravel 40 will get you wherever you’re going, no matter what the trail throws at you. More progressive, more control and more mounts mean this adventure-ready machine is your ticket to getting out there. Find yourself, get lost.

OVERSIZED BOTTOM BRACKET

The PF86 bottom bracket allows for a wide connection of the downtube and the tapered seattube to the BB box. Together with a stiffness-optimized lay-up and SCOTT’s patented carbon
manufacturing process, the BB stiffness of the Addict Gravel Disc reaches an impressive level.

TAPERED HEADTUBE

The Addict Gravel Disc features 1 1/8″ to 1 1/2″ integrated bearings and a tapered headtube. The headtube diameter allows for wider connections of the toptube and downtube which results in an increased of torsional stiffness. The rigid front end enables direct, precise and safe handling of the bike, even in the most technical of turns.

EVO-LAP TECHNOLOGY

With the proper selection of materials, eighty percent of the work to create a frame is done. But the remaining twenty percent requires most of our efforts. For this reason, our choice of the most advanced carbon fibers in the market is followed by intensive use of specific tools, like FEA (finite element analysis) software, to map out the carbon lay-up.

With FEA software, we can simulate different forces on a virtual model of the frame and adjust the frame construction accordingly. FEA software enables us to create complete virtual prototypes incorporating all the physical phenomena that exist in real-world environments.

With our Evo-Lap technology we model the frame to optimize the surface area, simulate tube structures with different ply orientations, observe the results of using different configurations, and test the stress distribution in different areas of the frame. Thanks to this extensive computer modeling, we’ve optimized the carbon layers in all the parts of our frame. When the parts were bonded together in the first prototypes, the result was a super light and compact frame without sacrificing the stiffness, comfort or impact resistance. The entire range benefitted from our Evo-Lap technology.

1 OR 2-BY DRIVETRAIN

Perfectly compatible with 1 and 2-by drivetrains. For 1-by, the front derailleur plate can be replaced with a bike-specific chain guide or closing plate.

AERO TUBE SHAPES

Gravel and aero can also go hand in hand. SCOTT’s patented airfoil design has been applied to the bike’s main tubes (down tube, head tube, seat tube, seat post, seat stays) with the goal of optimizing the airflow and reducing the overall drag, without any compromise on comfort and compliance.

COMFORT FEATURES

To guarantee a controlled and smooth riding experience we increased the tire clearance to 45mm, lowered the seat stays and came up with a carbon layering which guarantees both optimal pedaling efficiency and enough comfort when it gets rough.

FENDER MOUNTS

The Addict Gravel comes with well-hidden mounts for Syncros-specific fenders, making it a perfect commuter bike as well. The tire clearance with fenders is 40mm.

MOUNTS

The new Addict Gravel comes with smart mounts for gear and accessories that make it ready for serious adventure rides. You will find a mounting option for bolt-on top-tube bags and accessories, an extra mount on the down tube for an additional bottle cage or toolbox, and two different bottle cage positions for better access when riding with a frame bag.

Please note: Images are for illustrative purposes only, actual specification may differ.

Frame Specs
  • Sizes | 49, 54, 58, 56
  • Colors | Black
  • Frame | Addict Gravel Disc HMF Carbon Gravel geometry / Replaceable Derailleur Hanger Internal cable routing Syncros fender kit ready
  • Fork | Addict Gravel HMF Flatmount Disc 1 1/4"-1 1/2" Excentric Carbon steerer
Components
  • Handlebar | Syncros Creston 2.0 X Alloy 31.8mm
  • Stem | Syncros RR2.0 1 1/4" / four Bolt 31.8mm
  • Seatpost | Syncros Duncan 1.0 D-Shape
  • Saddle | Syncros Tofino Regular 2.0 Cutout
  • Pedals | Not Included
Drivetrain
  • Shifters | Shimano GRX ST-RX610 Disc 24 Speed
  • Front Derailleur | Shimano GRX FD-RX820-F
  • Rear Derailleur | Shimano GRX RD-RX820 24 Speed
  • Brakes | Shimano BR-RX410 Hyd. Disc
  • Cassette | Shimano CS-HG710 11-36
  • Chain | Shimano CN-M6100-12
  • Crankset | Shimano GRX FC-RX610-2 46-30 T
  • Bottom Bracket | Shimano BB-RS500 PB
Wheels
  • Rims | Syncros RP2.0 Disc Syncros SL Axle / Removable Lever with Tool
  • Tyres | Schwalbe G-One Bite Performance 700x45C
Other
  • Extras | APPROX WEIGHTS IN KG: 9.33
Geometry
XS/49 S/52 M/54 L/56 XL/58
A head tube angle 70.0 ° 70.0 ° 71.0 ° 71.0 ° 71.0 °
B head tube length 95.0 mm 122.0 mm 140.0 mm 166.0 mm 187.0 mm
C top tube horizontal 518.0 mm 534.5 mm 554.5 mm 578.5 mm 592.5 mm
D standover height 759.0 mm 786.0 mm 807.0 mm 828.0 mm 847.0 mm
E BB offset -71.0 mm -71.0 mm -71.0 mm -71.0 mm -71.0 mm
F BB height 283.0 mm 283.0 mm 283.0 mm 283.0 mm 283.0 mm
G wheel base 1,009.4 mm 1,022.9 mm 1,029.2 mm 1,048.7 mm 1,063.5 mm
H BB center to toptube center 447.0 mm 477.0 mm 498.0 mm 516.0 mm 536.0 mm
I BB center to top of seattube 477.0 mm 507.0 mm 528.0 mm 546.0 mm 566.0 mm
J seat angle 74.5 ° 74.0 ° 73.5 ° 73.0 ° 73.0 °
K chainstay 425.0 mm 425.0 mm 425.0 mm 425.0 mm 425.0 mm
L reach 374.1 mm 378.4 mm 387.1 mm 398.2 mm 406.1 mm
M stack 519.0 mm 544.4 mm 565.3 mm 589.9 mm 609.7 mm
N stem length 83.0 mm 93.0 mm 103.0 mm 103.0 mm 113.0 mm
