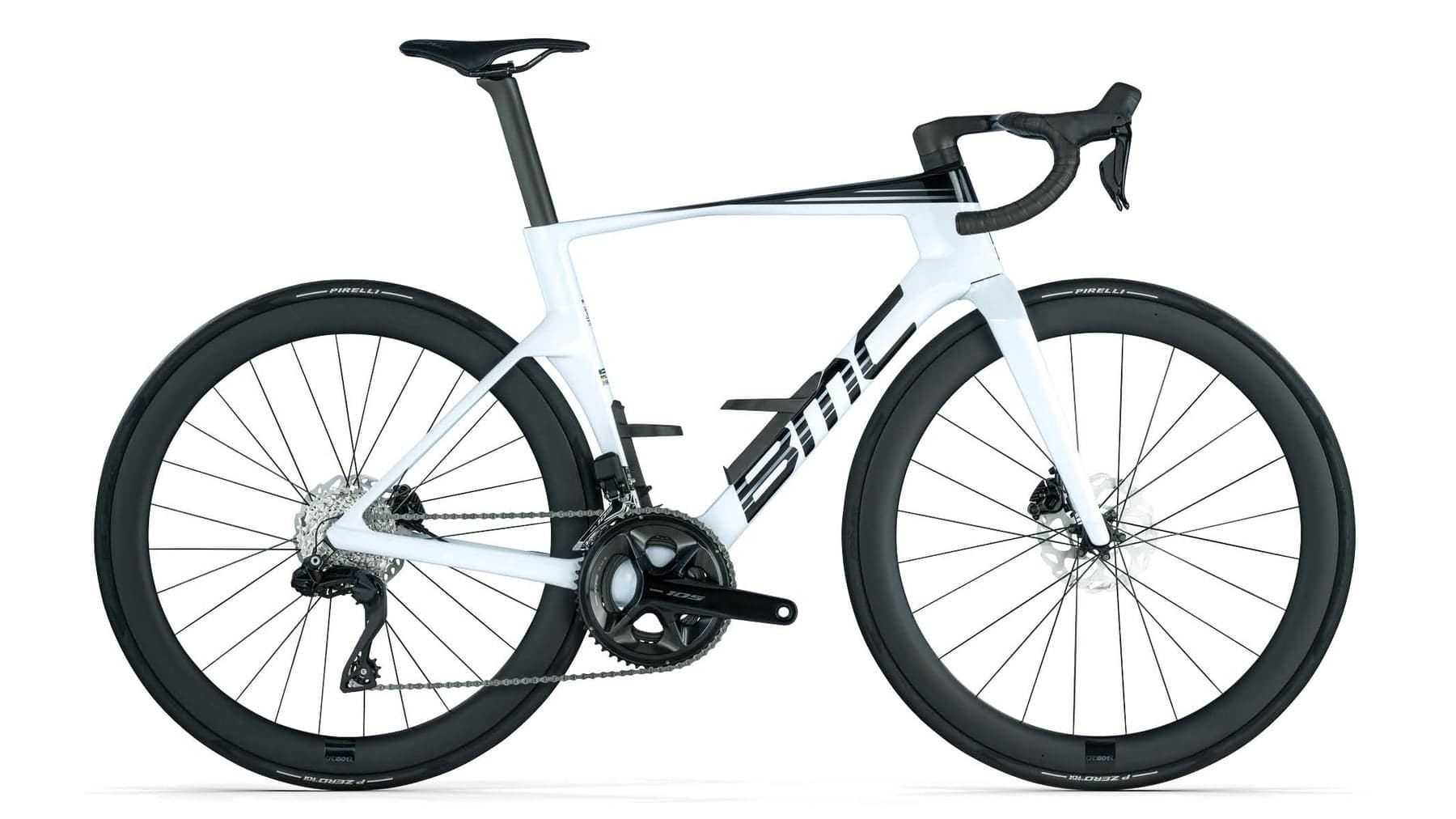

BMC Teammachine R 01 FIVE 105 Di2 (2026)
SOLD OUT
$9,999.00
Special Order from Supplier.
Please allow an additional 2-5 business days.
Please allow an additional 2-5 business days.
Frame Specs
- Sizes | 47, 51, 54, 56, 58, 61
- Colors | Cool White / Black
- Frame | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
- Fork | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Components

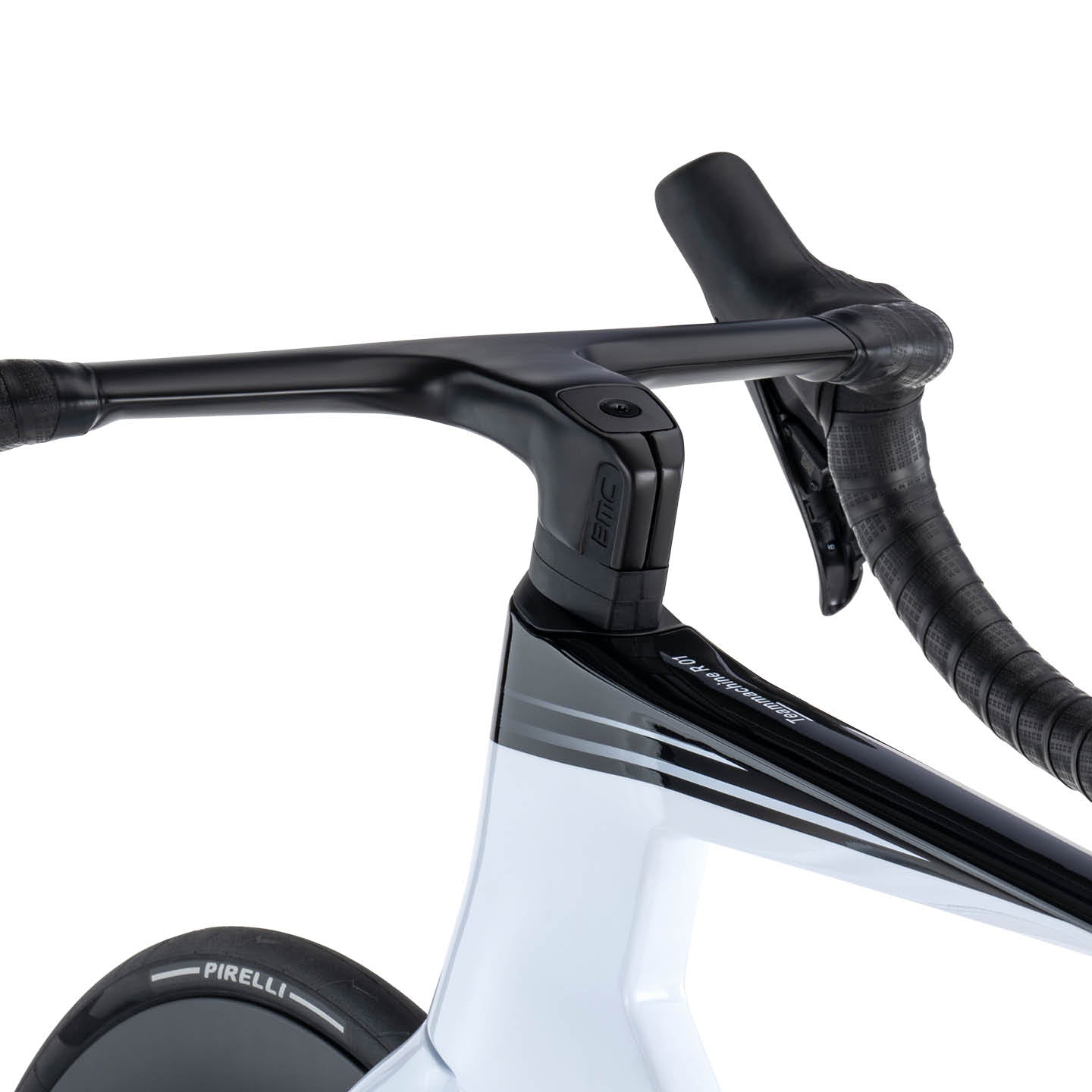

- Handlebar | ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

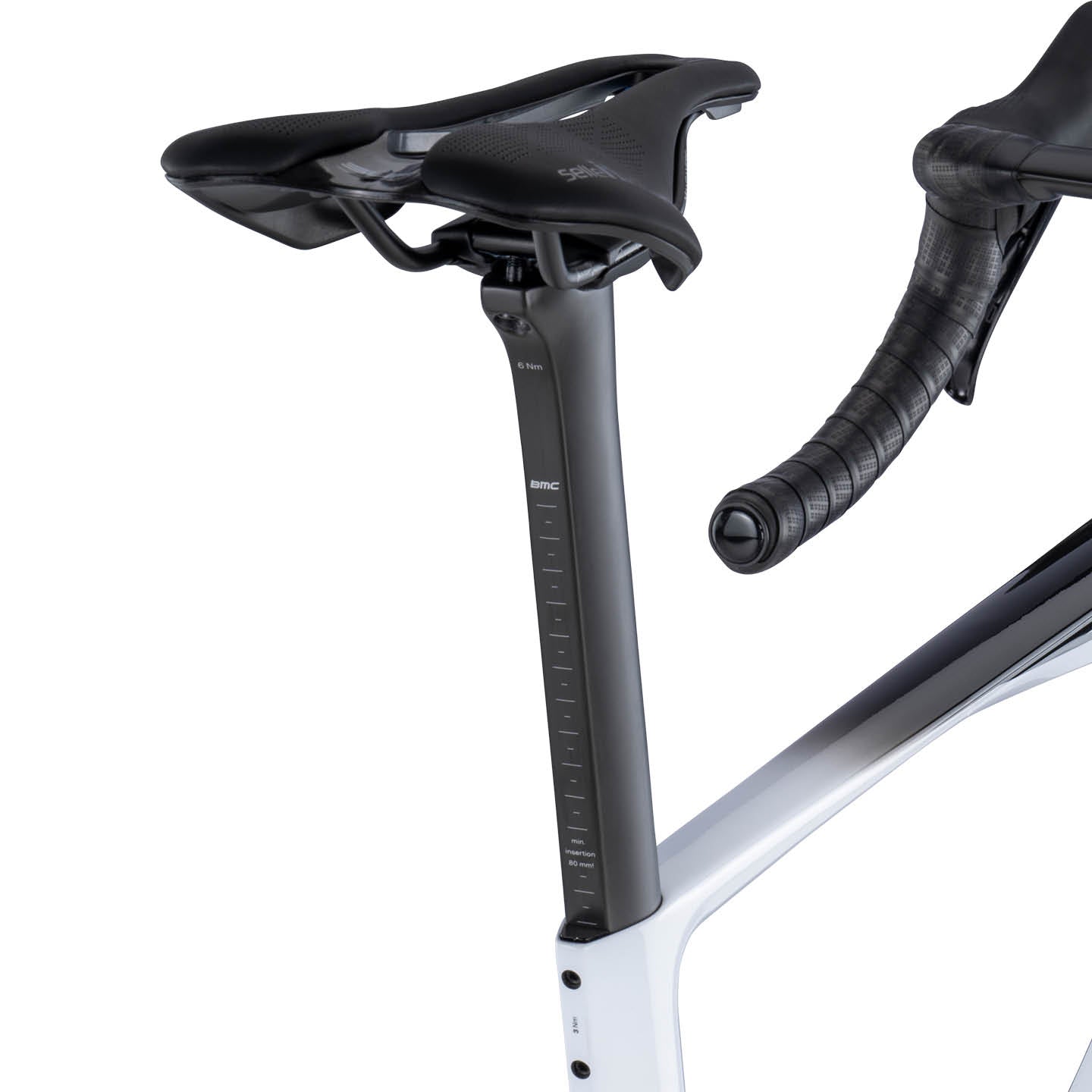

- Seatpost | Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset
- Saddle | Selle Italia SLR Boost Superflow | Manganese Rail | 145mm
Drivetrain
- Shifters | SHIMANO 105 Di2 (ST-R7170)
- Front Derailleur | SHIMANO 105 Di2 (FD-R7150)
- Rear Derailleur | SHIMANO 105 Di2 (RD-R7150)
- Brake Levers | SHIMANO 105 (BR-R7170)
- Cassette | SHIMANO 105 (CS-R7101)
- Chain | SHIMANO CN-M6100

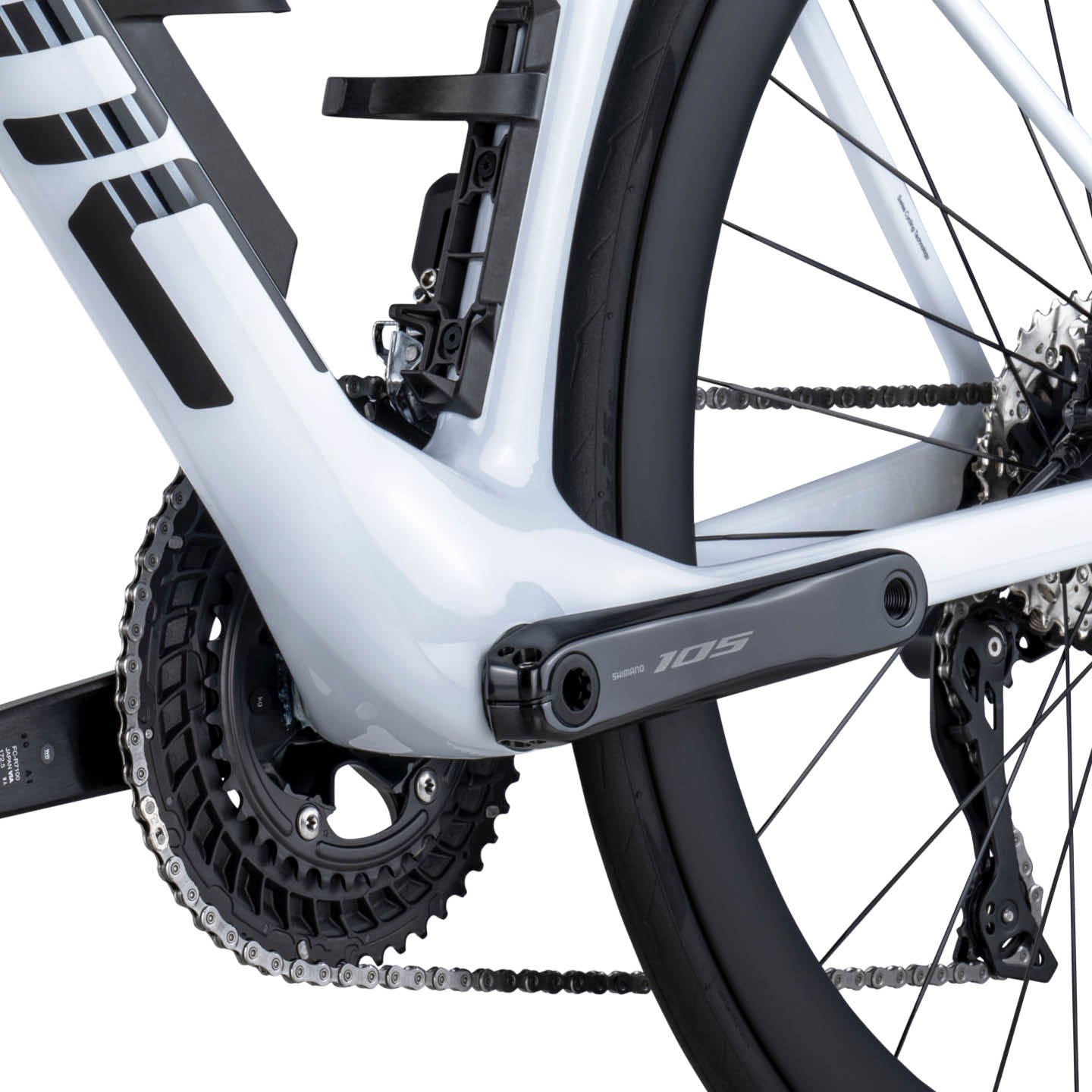

- Crankset | SHIMANO 105 (FC-R7100)
- Bottom Bracket | SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Wheels
- Rims | CR 50 Carbon | Tubeless Ready | 50mm
- Tyres | Pirelli P Zero Race TLR | 26mm
Other
- Extras | Aerocore Bottle Cages | Computer mount for Garmin and Wahoo | WEIGHT LIMIT: 110 Kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 77 | 77 | 77 | 77 | 77 | 77 |
| Bar Width | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
| Standover Height | 721 | 755 | 781 | 799 | 813 | 836 |
| Stem Angle | -15° | -15° | -15° | -15° | -15° | -15° |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 999 | 1015 | 1030 |
Swiss, Premium, Performance Cycling
Intricate Swiss engineering is a given when you’re talking about BMC Switzerland. This premium approach to bikes goes back to 1994, when we began in Grenchen, Switzerland, where we’re still housed today. With just 120 employees and three global offices, you could be surprised at the extent of our innovation. Our in-house Impec Lab is the beating heart of our research and development thanks to some of the brightest minds in the industry keeping us at the cutting edge of design. After extensive development, our collection naturally becomes the choice of the world’s top athletes, who go on to win such races as the Tour de France, Team Time Trials, World Championships of various disciplines, and numerous Ironman Championships. The sport of cycling is evolving at a breakneck speed – and we at the front of the bunch, pushing the pace.
The Swiss know their mountains. This small central European country owes a lot to its topography. A romantic explanation for its evolution, these very mountains influenced the birth of its independence and shaped the lifestyle of its people and culture, creating a highly diverse yet very diplomatic landscape. Peaks and valleys are virtually unavoidable, but for a bicycle manufacturer like BMC they provide the canvas for our dreams. We don’t see those rocky summits as insurmountable but as mere obstacles, and we’re on a perpetual hunt for the best ways to overcome them – with pride, precision, and quality engineering.
A high value or a value in excess of that normally or usually expected. This is exactly what BMC strives to deliver – an enrichment of your ride. It’s an ambition that goes some way to explaining why we invest so heavily in research and development.
PMC is a specialist road store with the highest bike build standards and customer service record in the industry. Please contact any of our friendly staff if you are in need of any expert advice or answers to any queries you may have, or to take advantage of a test ride and experience the PMC advantage.
Our bike fitting service is done at time of purchase but is not limited to this only. We offer an on-going free bike fitting service within the first year to accommodate possible changes in your fitness, flexibility and performance. We can also assess current riding techniques such as pedalling efficiency, correct posture etc. and offer any advice on an individual basis in order to advance your cycling comfort and performance. This includes free head stem swap overs at any time within the first year. Our opinion is that the perfect bike fit is something that grows with your riding and can be fluid as you progress or adapt to your riding level. Every bike fit is individual to a riders certain requirements and correctly fitted, can turn a good bike riding experience into a great one. We also offer a free follow up service and highly recommend this is done within the first 6 months or the 500-1000km mark. This is the most important service a bike can get, with it getting the full treatment to ensure everything has bedded in well, ensuring your ride is maintained and performing at it's optimum level. Our service goes over and above the normal adjustments required with any issue arising being rectified free of charge unless due to normal wear and tear. Product Enquire
