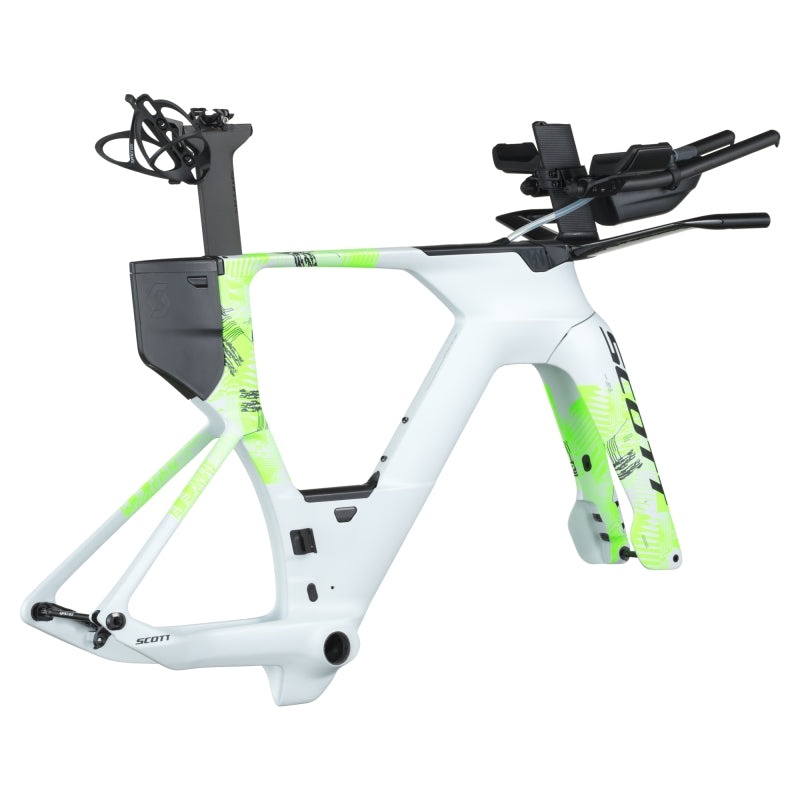

Scott Plasma RC LTD HMX Frameset (2026)

$7,499.00

Enquire
Special Order from Supplier.
Please allow an additional 2-5 business days.

Contact us in store for more information on availability and pricing!

Description

Contact us in store for more information on availability and pricing!

With the SCOTT Plasma RC LTD, we really decided to flex our “Aero Muscles”. This Triathlon-specific bicycle features fully integrated cables, a hydration system and storage boxes. We’ve also made it versatile, making sure that anyone can find their most efficient cockpit position on the bike. If you thought the last Plasma was the fastest in the world (it was) then you ain’t seen nuthin’ yet.

Please note: Images are for illustrative purposes only, actual specification may differ.



Frame Specs
  • Sizes | S, M, L, XL
  • Colors | Ccumulus White
  • Frame | HMX Carbon Disc Mainframe, compatible for electronic Shifting
  • Fork | HMX Carbon fork for Disc Brake
Components
  • Handlebar | Syncros Creston iC TRI handlebar combo with E1 extensions
  • Seatpost | Plasma 6 HMX seatpost
Other
  • Extras | Plasma 6 Aero bottle | Plasma 6 Gel bottle | Plasma 6 Storage box | Plasma 6 Nutrition box
Geometry
XS/49 S/52 M/54 L/56 XL/58
A head tube angle / angle tube de direction 72.5 ° 72.5 ° 72.5 ° 72.5 ° 72.5 °
B head tube length / hauteur tube de direction 71.5 mm 71.5 mm 87.0 mm 108.0 mm 124.0 mm
B head tube length / hauteur tube de direction 106.5 mm 106.5 mm 122.0 mm 143.0 mm 159.0 mm
C top tube horizontal / longueur horizontale tube supérieur 509.3 mm 529.3 mm 555.8 mm 582.9 mm 609.5 mm
D standover height / hauteur entre-jambes 746.0 mm 746.0 mm 795.8 mm 815.8 mm 831.1 mm
E BB offset / exccentrage axe de pédalier -75.0 mm -75.0 mm -75.0 mm -75.0 mm -75.0 mm
F BB height / hauteur axe de pédalier 261.0 mm 261.0 mm 261.0 mm 261.0 mm 261.0 mm
G wheel base / entraxe roues 962.0 mm 982.0 mm 1,011.7 mm 1,043.0 mm 1,072.8 mm
H BB center to toptube center / dist. boitier - milieu tube supérieur 493.0 mm 493.0 mm 542.4 mm 562.3 mm 577.5 mm
I BB center to top of seattube / dist. boitier - sommet tube de selle 503.0 mm 503.0 mm 552.4 mm 572.3 mm 587.5 mm
J seat angle / angle tube de selle 75.2 ° 75.2 ° 75.2 ° 75.2 ° 75.2 °
K chainstay / longueur bases 410.0 mm 410.0 mm 410.0 mm 410.0 mm 410.0 mm
L reach / reach 372.5 mm 392.5 mm 417.5 mm 442.5 mm 467.5 mm
M stack / stack 520.0 mm 520.0 mm 535.0 mm 555.0 mm 570.0 mm
K chainstay MIN / longueur bases MIN 403.0 mm 403.0 mm 403.0 mm 403.0 mm 403.0 mm
K chainstay MAX / longueur bases MAX 413.0 mm 413.0 mm 413.0 mm 413.0 mm 413.0 mm
YL Pads stack LOW / Pads stack BAS 540.0 mm 540.0 mm 555.0 mm 575.0 mm 590.0 mm
YH Pads stack HIGH / Pads stack HAUT 660.0 mm 660.0 mm 675.0 mm 695.0 mm 710.0 mm
X H/S Pads reach SHORT / Pads reach COURT 362.2 mm 382.2 mm 407.2 mm 432.2 mm 457.2 mm
X L/L Pads reach LONG / Pads reach LONG 500.0 mm 520.0 mm 545.0 mm 570.0 mm 595.0 mm
